Improving Well Safety with Accurate, Real-Time Condensate Detection

Improving Well Safety with Accurate, Real-Time Condensate Detection

Condensate can easily be detected and quantified in a laboratory setting. However, real-time condensate detection, especially in the field, has been an elusive goal.

Why is condensate detection important? The simple answer is safety. The ramifications of undetected condensate impinging upon frac and trucking assets can be explosive. Many of the early catastrophic accidents experienced in basins across the United States can be directly correlated to condensate encroachment – that is, condensate ended up being in areas where it never should have been.

Condensate can be produced as part of a well’s natural lifecycle throughout the production phase of natural gas wells in wet gas areas. Production fluid gathering systems are constructed on well locations to store both production water and condensate that is gathered through the normal production cycle. The production water and hydrocarbons striate within the production tank infrastructure to allow for water haulers to haul production water for reuse or disposal, and hazardous material haulers to haul condensate to separation facilities for marketing.

While operational procedures can be implemented to prevent the hauling of flammable liquids by non-sanctioned haulers, errors relating to faulty telemetry or operational oversight can lead to potentially unsafe conditions. In January 2003, a truck fire erupted that resulted in three people being seriously burned and two people being killed. The fire traced back to condensate contamination that was caused by the release of hydrocarbon vapor during the unloading process. This accident could have been prevented if the condensate were observable and detected before it could impinge upon the situation. There are many other examples of dangerous incidents that have occurred in the past, and these types of incidents continue to have catastrophic potential across our basins every day.

Condensate contamination can have explosive results. Managing or eradicating the presence of condensates in areas they should not be can considerably improve safety.
Condensate contamination can have explosive results. Managing or eradicating the presence of condensates in areas they should not be can considerably improve safety.

The problem of condensate migration into unwanted operational areas is further compounded when production water is reused for completion operations. Centralized water offload locations designed for reuse water gathering create a more functional platform for operational water reuse. Troublingly, these operations create opportunities for production water combined with large amounts of condensate to get offloaded into these centralized facilities contaminating the bulk water and requiring costly cleanup efforts. Condensate contamination of the frac causes further safety and costly operational concerns.

Fortunately, effective, robust and real-time condensate detection is now available. This technology is accurate enough to prevent condensate from getting on trucks as it is loaded from production tanks. It can also prevent condensate from being unloaded onto frac sites as the water is delivered from the production tanks. Eliminating the ability of condensate getting onto trucks and the frac pad solves 99 percent of the condensate-related problems seen by the oil and gas industry.

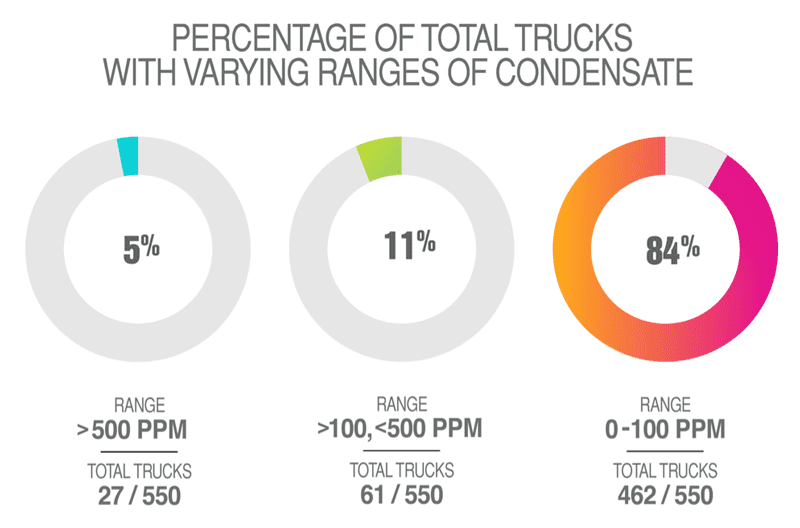

With the newly developed ability for real-time detection, exploration and production (E&P) companies and their vendors can prevent condensate migration. The HC-DETX condensate detection technology has recently been developed and deployed in the field to prove its efficacy. Over a one-month trial, the HC-DETX prototype collected data from over 500 trucks that were being delivered into a centralized water storage and distribution facility. The facility was designed to gather produced water from a single operator’s producing well locations. Each driver loading production water on locations was instructed to observe a 36-inch buffer based on take level telemetry when pulling the tanks down so that they would not encroach on the floating condensate layer. Regardless of this operational protocol, the HC-DETX system observed condensate in different PPM ranges throughout the course of the trial. Of the 500-plus trucks tested, 84 percent tested lower than 100PPM; 61 trucks had condensate in the range of 100 to 500 PPM; and five percent had greater than 500 PPM condensate in their load. At the end of the trial, the HC-DETX probe allowed us to identify the fact that every truck had some percentage of condensate on board.

In a month-long trial, the HC-DETX prototype proved effective in showing real-time condensate levels in trucks. It also showed that every truck tested had some level of condensate on board – some exceeding 500 PPM (laboratory testing shows that ignition becomes possible at 100-150 PPM).
In a month-long trial, the HC-DETX prototype proved effective in showing real-time condensate levels in trucks. It also showed that every truck tested had some level of condensate on board – some exceeding 500 PPM (laboratory testing shows that ignition becomes possible at 100-150 PPM).

The HC-DETX detection system works by inserting a detection probe into the process line, where it provides continuous monitoring of the fluid stream with an accuracy down to a single PPM. The system is housed in a Class1/Div2 enclosure for deployment in hazardous areas and has been outfitted with a self-cleaning function tailored to the water stream to ensure that it does not lose detection ability due to plating or fouling. The system requires 110V, 1HP power and 7CF of air at 90psi per hour. Using cellular or satellite connectivity, the system can be accessed from anywhere in the world allowing visibility into condensate-related accidents and alarm conditions.

The HC-DETX in-line condensate detection system is an accurate system for detecting the presence of hydrocarbons in production water. It is capable of measuring condensate down to one PPM and will prevent condensate from contaminating trucks and fracs. Photos courtesy of Comtech Industries, Inc.
The HC-DETX in-line condensate detection system is an accurate system for detecting the presence of hydrocarbons in production water. It is capable of measuring condensate down to one PPM and will prevent condensate from contaminating trucks and fracs. Photos courtesy of Comtech Industries, Inc.

Ultimately, the HC-DETX system’s ability to detect the presence of condensate in situ creates a platform for prevention and rejection to eliminate condensate migration. The detection skid can be outfitted with fast acting pneumatic valves that, upon detection of condensate levels of a predetermined hazardous PPM range, can eliminate or redirect flow. The redirection of flow can allow for the capture and separation of condensate into separate process vessels to eliminate safety hazards while allowing for the resale of the captured hydrocarbons.

While current operating procedures have not been sufficient to prevent condensate migration, a solution is now at hand. Continuing development of technology that allows for real time monitoring will give exploration and production companies assurance that their greatest assets are protected from these hazardous conditions.
